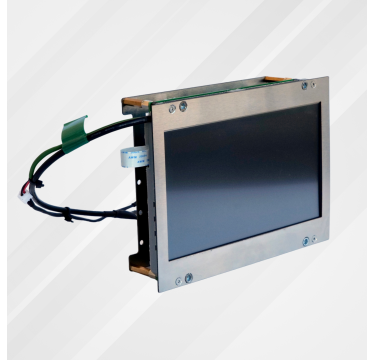

Control module "DjinnX" is intended for use in cleaning and testing stands of injectors.Characteristics of the DJinn X moduleInjectors: classic, LPG, FSI, CDI (depending on model) Injector control channels: 4 or 6. Bridge circuit for connecting nozzles.The voltage at the nozzles is 4 -100V (depending on the model of the module).Outputs 5 channels. To control the nodes of the nozzle cleaning stand (high pressure fuel pump, valve. Three of them with PWM)Inputs 3 channels. For working with sensors (e.g. pressure).Encoder ConnectorIndication: color graphic indicator 2.8 ", 240 * 320 pixels.Touch keyboard, 12 buttons.Injector resistance 0.1–20 Ohm (depending on model) Maximum RPM consumption (MPI) 20,000 rpm. Data transfer: USB, WiFi.External control programs - DjinnX-Terminal program (Win7, Win8, Win10).Supply voltage +11 ... 12V (maximum + 12.5V!)USB Connector Format: Mini USB 7x3.2mmDimensions of the module panel (ШВД): 122х107х43mmWarranty 24 monthsOperating modes:-"Cleaning".-"Consumption". Submodes: static, dynamic, automatic, flow;-"Test". Winding resistance, opening time, current, current graphs;-"Demagnetization".- "LPG". Dynamic flow charts.The Djinn X module is supplied assembled, the photo below is taken apart for information.The package includes the program "DjinnX-Terminal". Provides: maintain a customer database, manage the DjinnX module from a computer, print or send an email report to the client.DOCUMENTATION in pdf format - DOWNLOAD LINKDOCUMENTATION in e-book format - DOWNLOAD LINKDjinnX-Terminal program - DOWNLOAD LINK DjinnX-Terminal.pdfWaveformsVideo test nozzles "DjinnX-FSI" + "Launch"Examples for checking and cleaning injectorsDistribution of firmware updatesElements of the module (controller): board, keyboard, indicator, bezel, film overlay.(There is a mounting bezel with the dimensions of the "Djinn" / "DjinnM" modules)In
more detail you can familiarize yourself with the information about the
possibilities in the documentation by going to the blog or by asking a
question personally to the developer: +38(063)8151000 (Telegram, WhatsApp, Viber, Signal)...
250$

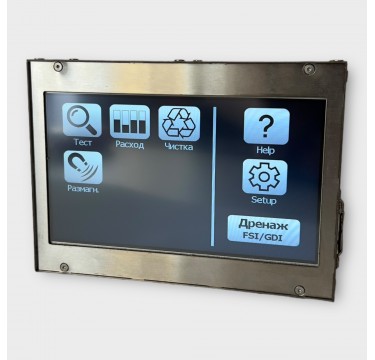

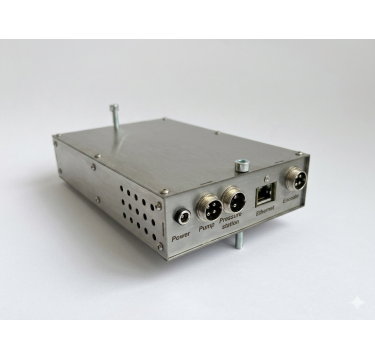

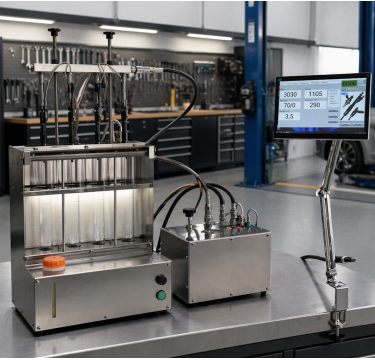

Injector Tester - control module for testing and cleaning injectors.Execution in the form of a module with a mounting plate and in a housing with an integrated power supply.
Touch screen 4 ″ (800 × 480).
Module dimensions 130x110x60 mm.
The firmware language is English or Russian...
300$
